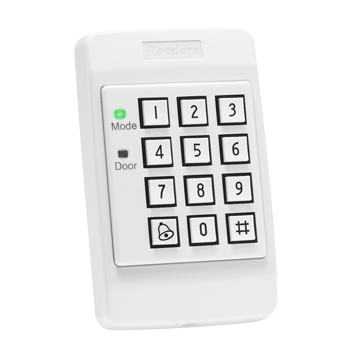

AC-D32

Rosslare’s AC-D32 is one in a highly sophisticated line of standalone controllers, ideal for residential and commercial access applications. The controller services up to 500 users and allows entry by proximity cards and PIN codes.

The attractively designed AC-D32 is easy to program and easy to use. This advanced standalone controller is packed with features such as eight auxiliary modes, multiple user levels, multiple modes of operation, and back and case tamper protection.

Features

  • Operating Voltage Range :- 12–16 VDC from a regulated power supply
  • Input Current :– Standby: 40 mA (not including attached devices) Maximum: 90 mA (not including attached devices)
  • Inputs :- REX – N.O., Dry Contact Auxiliary Input (In/Monitor) • Monitor Mode – N.C., Dry Contact • Input Mode – N.O., Dry Contact
  • Relay Outputs :- • Lock Strike Relay – Electronic, 3.5 A with built-in suppressor protection • Auxiliary Relay – Form C, 1A
  • LEDs :- Two tri-colored LEDs
  • Compatible Cards :- All 26-Bit EM proximity cards
  • Modulation :- ASK at 125 kHz
  • Maximum Reading Range :- 90 mm (3.5 in.)
  • Operating Environment :- Indoor use
  • Operating Temperature :- -31˚C to 63˚C (-25˚F to 145˚F)
  • Operating Humidity :- 0 to 95% (non-condensing)
  • RFI Protection :- > 20 V/m up to 1000 MHz
  • Dimensions (H x W x D) :- 122 x 75 x 24 mm (4.8 x 2.95 x 0.94 in.)
  • Weight :- 120 g (4.23 oz)
